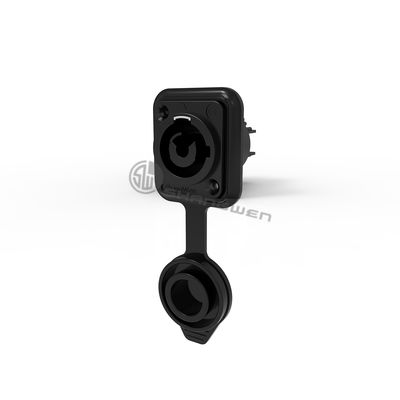

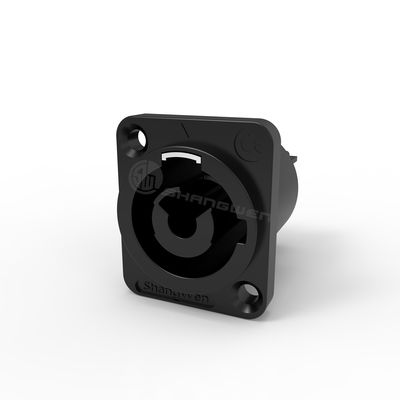

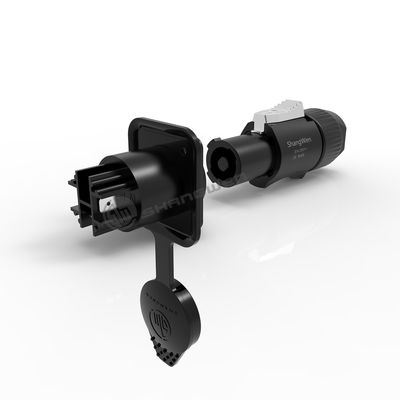

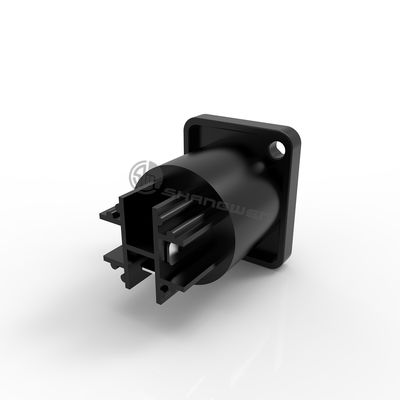

IP65 Waterproof Triple Core LED Display Power Connectors 3Pins 250V AC Female Plug Male Chassis Outdoor Connector

  • IP65 Waterproof Triple Core LED Display Power Connectors 3Pins 250V AC Female Plug Male Chassis Outdoor Connector
  • IP65 Waterproof Triple Core LED Display Power Connectors 3Pins 250V AC Female Plug Male Chassis Outdoor Connector
  • IP65 Waterproof Triple Core LED Display Power Connectors 3Pins 250V AC Female Plug Male Chassis Outdoor Connector
  • IP65 Waterproof Triple Core LED Display Power Connectors 3Pins 250V AC Female Plug Male Chassis Outdoor Connector
Place of Origin Guangdong, China
Marca SHANGWEN
Model Number SW3MPB1-WN
Minimum Order Quantity 10 pieces
Preço CN¥10.77/pieces

Contacte-me para amostras grátis e vales.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
IP level ip65 Type led display connector
Application Power Gender Male
Housing Material zinc alloy Industrial electronics accessories
Destacar

250V AC Waterproof Power Connectors

,

IP65 Waterproof Power Connectors

,

3Pins Waterproof Power Connectors
Deixe um recado
Descrição de produto
Products Description
Power connector series-male powercon（output port）
This series is widely used in outdoor rental LED display power connection.
The plastic part is made of PA6 material, with stable electrical performance, good pressure resistance, high temperature
resistance, explosion resistance and corrosion resistance.
The copper needle is made of beryllium copper material imported from the United States and plated with silver, which has strong contact stability and can strengthen the control of temperature rise.
Using rotary locking design, easy to operate, stable and reliable !
IP65 Waterproof Triple Core LED Display Power Connectors 3Pins 250V AC Female Plug Male Chassis Outdoor Connector 0
Model : SW3MPB1-WN
( outdoor use/black output )
☑Lockable triple core equipment (AC) connectors with contacts for straight, neutral and pre-adapted safety grounding
☑high current capacity, rated at 20A/250V AC
☑Quick and simple locking system, the keys are firm and do not fall off
☑Connection mode:
1. Screw clamping and welding
2. Lock the cable with screws
☑Quick, simple locking system
☑Connect reliably
☑Use different color design to distinguish signal input and output, yellow input, black output
☑Using left and right positioning connection design, can effectively prevent short circuit caused by misplug
☑The inner core is designed to prevent the copper needle from withdrawing from the inner core due to excessive pulling force
IP65 Waterproof Triple Core LED Display Power Connectors 3Pins 250V AC Female Plug Male Chassis Outdoor Connector 1
IP65 Waterproof Triple Core LED Display Power Connectors 3Pins 250V AC Female Plug Male Chassis Outdoor Connector 2
IP65 Waterproof Triple Core LED Display Power Connectors 3Pins 250V AC Female Plug Male Chassis Outdoor Connector 3
1.Electrical parameters
Contacts NO.
2+PE
Rated current
20A
Rated voltage
250V AC
Contact resistance
≤5mΩ
Dielectric strength
4000V DC
Insulation resistance
＞1000MΩ
2.Mechanical parameters
Service life
＞1000 times
Power line
2.5mm²(8mm - 12mm)
Wire stripping length
7-8mm
Type of teminals
Screw type clamping units solder termination
3.Material and environmental parameters
Shell
PA
Contacts
Cu alloy
Contact surface
Ag
Flame-retardant grade
UL94-V0
Protection grade
IP65
Temperature range
-30°C to +80°C
4.Size reference (unit /mm)
IP65 Waterproof Triple Core LED Display Power Connectors 3Pins 250V AC Female Plug Male Chassis Outdoor Connector 4
Application area
IP65 Waterproof Triple Core LED Display Power Connectors 3Pins 250V AC Female Plug Male Chassis Outdoor Connector 5
Company Information
IP65 Waterproof Triple Core LED Display Power Connectors 3Pins 250V AC Female Plug Male Chassis Outdoor Connector 6
Patent & Certification
IP65 Waterproof Triple Core LED Display Power Connectors 3Pins 250V AC Female Plug Male Chassis Outdoor Connector 7
Exhibition activities
IP65 Waterproof Triple Core LED Display Power Connectors 3Pins 250V AC Female Plug Male Chassis Outdoor Connector 8
Packaging reference
IP65 Waterproof Triple Core LED Display Power Connectors 3Pins 250V AC Female Plug Male Chassis Outdoor Connector 9
Payment and logistics
IP65 Waterproof Triple Core LED Display Power Connectors 3Pins 250V AC Female Plug Male Chassis Outdoor Connector 10
FAQ
IP65 Waterproof Triple Core LED Display Power Connectors 3Pins 250V AC Female Plug Male Chassis Outdoor Connector 11
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
