Outdoor Audio Waterproof 5-Pin XLR Female Jack Socket Connector Panel Mount with Sealed Rubber Jacket for Power Applications

  • Outdoor Audio Waterproof 5-Pin XLR Female Jack Socket Connector Panel Mount with Sealed Rubber Jacket for Power Applications
  • Outdoor Audio Waterproof 5-Pin XLR Female Jack Socket Connector Panel Mount with Sealed Rubber Jacket for Power Applications
  • Outdoor Audio Waterproof 5-Pin XLR Female Jack Socket Connector Panel Mount with Sealed Rubber Jacket for Power Applications
  • Outdoor Audio Waterproof 5-Pin XLR Female Jack Socket Connector Panel Mount with Sealed Rubber Jacket for Power Applications
  • Outdoor Audio Waterproof 5-Pin XLR Female Jack Socket Connector Panel Mount with Sealed Rubber Jacket for Power Applications
  • Outdoor Audio Waterproof 5-Pin XLR Female Jack Socket Connector Panel Mount with Sealed Rubber Jacket for Power Applications
Lugar de origem Guangdong, China
Marca SHANGWEN
Número do modelo SWM5X-2ZFS-KN (prata), SWM5X-2ZFB-KN (preto)
Quantidade de ordem mínima 10 peças
Preço $1.29-1.36 / piece

Contacte-me para amostras grátis e vales.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Aplicativo Poder Material de contato Liga de cobre
Corrente classificada 7.5a Gênero Fêmea
Material de moradia Liga de zinco Nível de IP IP65
Forma IP65 Tipo Conector de XLR
Eletrônica industrial Acessórios
Destacar

Waterproof 5-Pin XLR Connector

,

Outdoor Audio XLR Connector

,

Panel Mount XLR Connector
Deixe um recado
Descrição de produto
Products Description

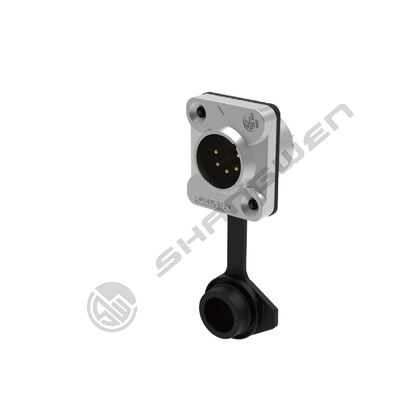

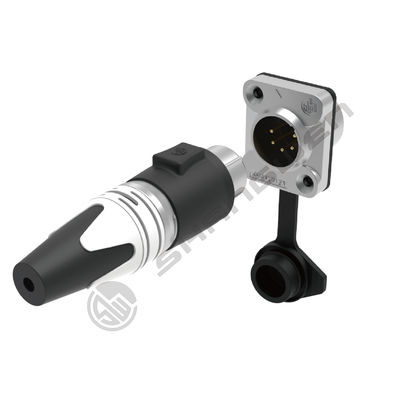

Waterproof XLR connector-5 pin male socket
Outdoor Audio Waterproof 5-Pin XLR Female Jack Socket Connector Panel Mount with Sealed Rubber Jacket for Power Applications 0
Model：SWF5X-2ZFS-KN  (Black)
               SWF5X-2ZFS-KN (Silver)
☑Sealed rubber jacket is waterproof and dust-proof
☑Standard D mounting dimensions, fully matched to existing installation
☑Zinc alloy shell, contact point gold-plated
☑Can solve the fast connection requirement of input and output of DMX signal in outdoor conditions in the lighting industry
☑Waterproof IP65
Outdoor Audio Waterproof 5-Pin XLR Female Jack Socket Connector Panel Mount with Sealed Rubber Jacket for Power Applications 2
Outdoor Audio Waterproof 5-Pin XLR Female Jack Socket Connector Panel Mount with Sealed Rubber Jacket for Power Applications 4
Outdoor Audio Waterproof 5-Pin XLR Female Jack Socket Connector Panel Mount with Sealed Rubber Jacket for Power Applications 6
Outdoor Audio Waterproof 5-Pin XLR Female Jack Socket Connector Panel Mount with Sealed Rubber Jacket for Power Applications 8
1.Product parameters
Connection Type
XLR
Gender
male
2.Electrical parameters
Capacitance between contacts
≤7pF
Contact resistance
≤5mΩ
Dielectric strength
1.5kV DC
Insulation resistance
> 10GΩ (initial)
Rated current per contact
7.5A
Rated voltage
<50V
3.Mechanical parameters
Insertion force
≤ 20N
Withdrawal force
≤ 20N
Service life
＞1000 mating cycles
Chassis shape
D type
4.Material and environmental parameters
Contacts
Cu alloy
Contact plating
Au
Insert
Polyamide (PA 66 +30 % GF)
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Cr
Solder ability
Complies with IEC 68-2-20
Flame-retardant grade
UL 94 HB
Protection class
IP65
Temperature range
-30℃to +80℃

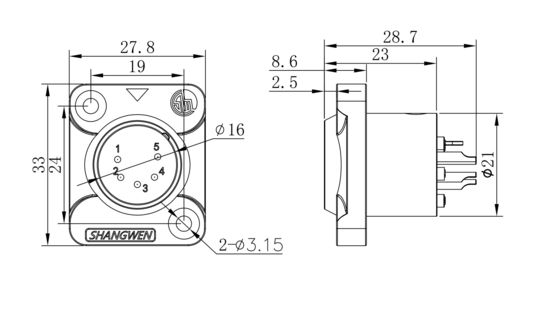

5.Size reference (unit /mm)
Outdoor Audio Waterproof 5-Pin XLR Female Jack Socket Connector Panel Mount with Sealed Rubber Jacket for Power Applications 10
Waterproof rubber(Unit:mm)
Outdoor Audio Waterproof 5-Pin XLR Female Jack Socket Connector Panel Mount with Sealed Rubber Jacket for Power Applications 12
Application area
Outdoor Audio Waterproof 5-Pin XLR Female Jack Socket Connector Panel Mount with Sealed Rubber Jacket for Power Applications 14
Company Information
Outdoor Audio Waterproof 5-Pin XLR Female Jack Socket Connector Panel Mount with Sealed Rubber Jacket for Power Applications 16
Patent & Certification
Outdoor Audio Waterproof 5-Pin XLR Female Jack Socket Connector Panel Mount with Sealed Rubber Jacket for Power Applications 18
Exhibition activities
Outdoor Audio Waterproof 5-Pin XLR Female Jack Socket Connector Panel Mount with Sealed Rubber Jacket for Power Applications 20
Packaging reference
Outdoor Audio Waterproof 5-Pin XLR Female Jack Socket Connector Panel Mount with Sealed Rubber Jacket for Power Applications 22
Payment and logistics
Outdoor Audio Waterproof 5-Pin XLR Female Jack Socket Connector Panel Mount with Sealed Rubber Jacket for Power Applications 24
FAQ
Outdoor Audio Waterproof 5-Pin XLR Female Jack Socket Connector Panel Mount with Sealed Rubber Jacket for Power Applications 26
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
