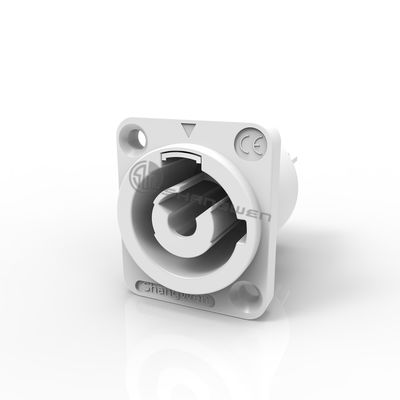

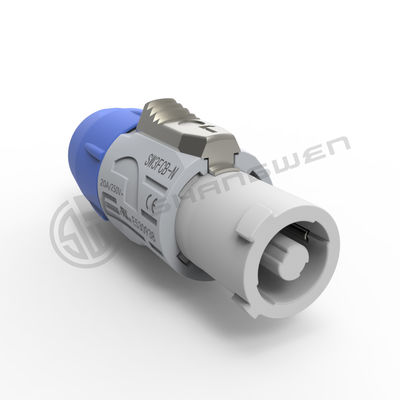

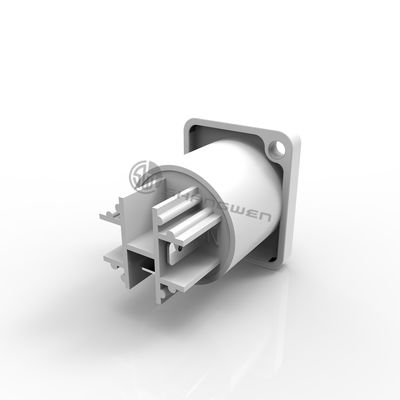

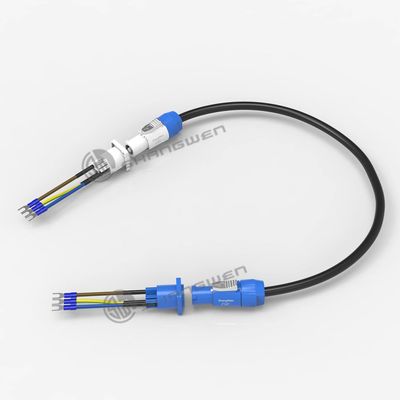

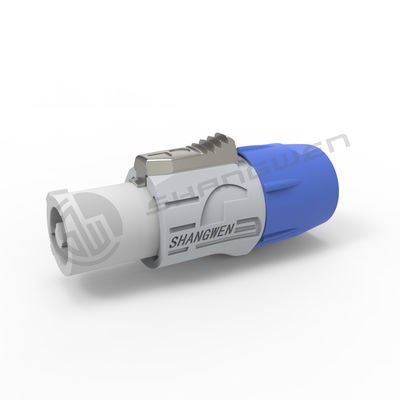

Ip44 Indoor Lockable Triple Core 250V AC Connector Female and Male Powercon Connector

  • Ip44 Indoor Lockable Triple Core 250V AC Connector Female and Male Powercon Connector
  • Ip44 Indoor Lockable Triple Core 250V AC Connector Female and Male Powercon Connector
  • Ip44 Indoor Lockable Triple Core 250V AC Connector Female and Male Powercon Connector
  • Ip44 Indoor Lockable Triple Core 250V AC Connector Female and Male Powercon Connector
  • Ip44 Indoor Lockable Triple Core 250V AC Connector Female and Male Powercon Connector
  • Ip44 Indoor Lockable Triple Core 250V AC Connector Female and Male Powercon Connector
  • Ip44 Indoor Lockable Triple Core 250V AC Connector Female and Male Powercon Connector
Lugar de origem Guangdong, China
Marca SHANGWEN
Número do modelo SW3FCB-N
Quantidade de ordem mínima 10 peças
Preço $0.93-1.23 / piece

Contacte-me para amostras grátis e vales.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Nível de IP Proteção IP44 Tipo conector conduzido da exposição
Aplicativo Poder Gênero Macho
Eletrônica industrial Acessórios
Destacar

Male Powercon Connector

,

250V AC Powercon Connector

,

Lockable Female Powercon Connector
Deixe um recado
Descrição de produto
Products Description
Power connector series-male powercon（output port）
This series is widely used in indoor rental LED display power connection.
The plastic part is made of PA6 material, with stable electrical performance, good pressure resistance, high temperature resistance, explosion resistance and corrosion resistance.
The copper needle is made of beryllium copper material imported from the United States and plated with silver, which has strong contact stability and can strengthen the control of temperature rise.
Using rotary locking design, easy to operate, stable and reliable !
Ip44 Indoor Lockable Triple Core 250V AC Connector Female and Male Powercon Connector 0

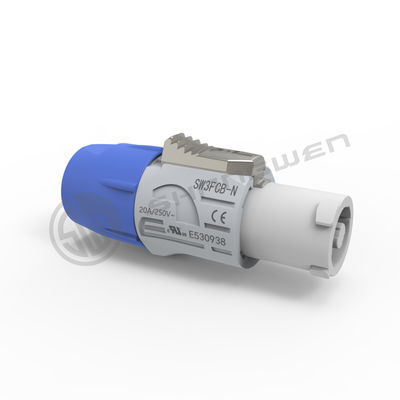

Model：SW3FCB-N
 ( indoor use/white output )
☑Lockable triple core equipment (AC) connectors with contacts for straight, neutral and pre-adapted safety grounding
☑high current capacity, rated at 20A/250V AC
☑Quick and simple locking system, the keys are firm and do not fall off
☑Connection mode:
1. Screw clamping and welding
2. Lock the cable with screws
☑Quick, simple locking system
☑Connect reliably
☑Use different color design to distinguish signal input and output, blue input, white output
☑Using left and right positioning connection design, can effectively prevent short circuit caused by misplug
☑The inner core is designed to prevent the copper needle from withdrawing from the inner core due to excessive pulling force
1.Electrical parameters
Contacts NO.
2+PE
Rated current
20A
Rated voltage
250V AC
Contact resistance
≤5mΩ
Dielectric strength
4000V DC
Insulation resistance
＞1000MΩ
2.Mechanical parameters
Service life
＞1000 times
Power line
2.5mm²(8mm - 12mm)
Wire stripping length
7-8mm
Type of teminals
Screw type clamping units solder termination
3.Material and environmental parameters
Shell
PA
Contacts
Cu alloy
Contact surface
Ag
Flame-retardant grade
UL94-V0
Protection grade
IP44
Temperature range
-30°C to +80°C
4.Size reference (unit /mm)
Ip44 Indoor Lockable Triple Core 250V AC Connector Female and Male Powercon Connector 2
5.Installation reference drawing
Ip44 Indoor Lockable Triple Core 250V AC Connector Female and Male Powercon Connector 4
Ip44 Indoor Lockable Triple Core 250V AC Connector Female and Male Powercon Connector 6
Application area
Ip44 Indoor Lockable Triple Core 250V AC Connector Female and Male Powercon Connector 8
Company Information
Ip44 Indoor Lockable Triple Core 250V AC Connector Female and Male Powercon Connector 10
Patent & Certification
Ip44 Indoor Lockable Triple Core 250V AC Connector Female and Male Powercon Connector 12
Exhibition activities
Ip44 Indoor Lockable Triple Core 250V AC Connector Female and Male Powercon Connector 14
Packaging reference
Ip44 Indoor Lockable Triple Core 250V AC Connector Female and Male Powercon Connector 16
Payment and logistics
Ip44 Indoor Lockable Triple Core 250V AC Connector Female and Male Powercon Connector 18
FAQ
Ip44 Indoor Lockable Triple Core 250V AC Connector Female and Male Powercon Connector 20
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
