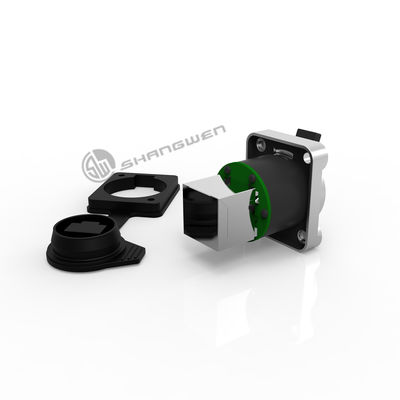

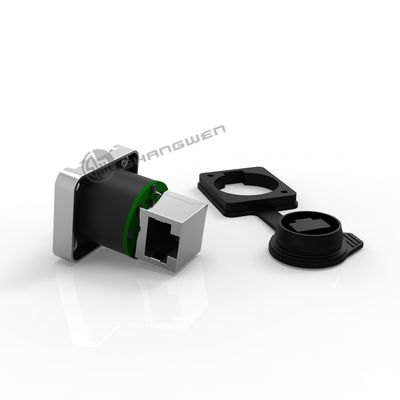

Angled Bottom Network Port Outdoor Rj45 Crystal Socket Pulg Ethernet Rj45 Waterproof Connector IP65 Female Socket

  • Angled Bottom Network Port Outdoor Rj45 Crystal Socket Pulg Ethernet Rj45 Waterproof Connector IP65 Female Socket
  • Angled Bottom Network Port Outdoor Rj45 Crystal Socket Pulg Ethernet Rj45 Waterproof Connector IP65 Female Socket
  • Angled Bottom Network Port Outdoor Rj45 Crystal Socket Pulg Ethernet Rj45 Waterproof Connector IP65 Female Socket
  • Angled Bottom Network Port Outdoor Rj45 Crystal Socket Pulg Ethernet Rj45 Waterproof Connector IP65 Female Socket
  • Angled Bottom Network Port Outdoor Rj45 Crystal Socket Pulg Ethernet Rj45 Waterproof Connector IP65 Female Socket
  • Angled Bottom Network Port Outdoor Rj45 Crystal Socket Pulg Ethernet Rj45 Waterproof Connector IP65 Female Socket
Lugar de origem Guangdong, China
Marca SHANGWEN
Número do modelo SW8FDYV
Quantidade de ordem mínima 10 peças
Preço $2.50-3.90 / piece

Contacte-me para amostras grátis e vales.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Tipo Soquete RJ45 Aplicativo Ethernet
Gênero Fêmea Eletrônica industrial Acessórios
Destacar

Outdoor Rj45 Female Socket

,

Ethernet Rj45 Crystal Socket Pulg

,

Network Port Outdoor Rj45 Connector
Deixe um recado
Descrição de produto
Products Description
Signal connector series-RJ45 connector
Based on a safety lock on the basis of RJ45 connection, is widely used in professional audio, video, lighting and other network equipment, the socket is designed to become the standard in the design of industrial equipment panel installation, this type D size design perfect match the panel installation, RJ45 this in general formula design with metal blank and locking system at the same time, Includes panel mounting screws.
Angled Bottom Network Port Outdoor Rj45 Crystal Socket Pulg Ethernet Rj45 Waterproof Connector IP65 Female Socket 0
Model：SW8FDYV（outdoor use）
*The rear end has a 90°RJ45 crystal socket, and the mouth direction is opposite to the button direction, IP65*
☑Can be compatible with SW8MC-B or any standard RJ45 connector ☑D style with uniform metal flange, standard D mounting size ☑Sockets are rated D according to TIA/EIA568B and ISO/IEC11801 standards ☑D style, can be mounted from front or rear panel ☑All sockets are equipped with waterproof gaskets. With the installation of gaskets, the protection grade of IP65 can be reached,
which can fully meet the durable and stable signal transmission under harsh outdoor conditions ☑The back-end can be flexibly modified according to actual requirements ☑The transmission grade reaches CAT5e and is compatible with transmission grades below 5E ☑With shielding function
Angled Bottom Network Port Outdoor Rj45 Crystal Socket Pulg Ethernet Rj45 Waterproof Connector IP65 Female Socket 2
Angled Bottom Network Port Outdoor Rj45 Crystal Socket Pulg Ethernet Rj45 Waterproof Connector IP65 Female Socket 4
1. Electrical parameters
Contact resistance
＜10mΩ
Rated current
1.5 A
Rated voltage
50 V
Insulation resistance
≥0.5GΩ
Dielectric strength
1KV DC
Frequencyrange
1-100 MHz
Transmission performance
CAT 5e
2. Mechanical parameters
Service life
＞1000
Insertion force
≤ 20 N
Locking device
latch lock
Chassis shape
D
3. Material and environmental parameters
Shell
Zinc diecast (ZnAl4Cu1)
Contacts
Bronze
Socket
PBT
Contact surface
Au
Shell surface
Pearl Cr
Temperature range
-30℃to +80℃
4.Size reference (unit /mm)
Angled Bottom Network Port Outdoor Rj45 Crystal Socket Pulg Ethernet Rj45 Waterproof Connector IP65 Female Socket 6
Angled Bottom Network Port Outdoor Rj45 Crystal Socket Pulg Ethernet Rj45 Waterproof Connector IP65 Female Socket 8
5.Internal structure reference
Angled Bottom Network Port Outdoor Rj45 Crystal Socket Pulg Ethernet Rj45 Waterproof Connector IP65 Female Socket 10
6. Installation instructions with SW8MC-B plugs
Angled Bottom Network Port Outdoor Rj45 Crystal Socket Pulg Ethernet Rj45 Waterproof Connector IP65 Female Socket 12
Application area
Angled Bottom Network Port Outdoor Rj45 Crystal Socket Pulg Ethernet Rj45 Waterproof Connector IP65 Female Socket 14
Company Information
Angled Bottom Network Port Outdoor Rj45 Crystal Socket Pulg Ethernet Rj45 Waterproof Connector IP65 Female Socket 16
Patent & Certification
Angled Bottom Network Port Outdoor Rj45 Crystal Socket Pulg Ethernet Rj45 Waterproof Connector IP65 Female Socket 18
Exhibition activities
Angled Bottom Network Port Outdoor Rj45 Crystal Socket Pulg Ethernet Rj45 Waterproof Connector IP65 Female Socket 20
Packaging reference
Angled Bottom Network Port Outdoor Rj45 Crystal Socket Pulg Ethernet Rj45 Waterproof Connector IP65 Female Socket 22
Payment and logistics
Angled Bottom Network Port Outdoor Rj45 Crystal Socket Pulg Ethernet Rj45 Waterproof Connector IP65 Female Socket 24
FAQ
Angled Bottom Network Port Outdoor Rj45 Crystal Socket Pulg Ethernet Rj45 Waterproof Connector IP65 Female Socket 26
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
